As a leading global manufacturer of vehicle mount computers, CPDEVICE has been pioneering the evolution of machine control since its inception. We deliver integrated hardware and software solutions, including custom-designed interfaces, high-performance SoCs for AI applications, and breakthrough omni-communication modes, to empower our customers worldwide.

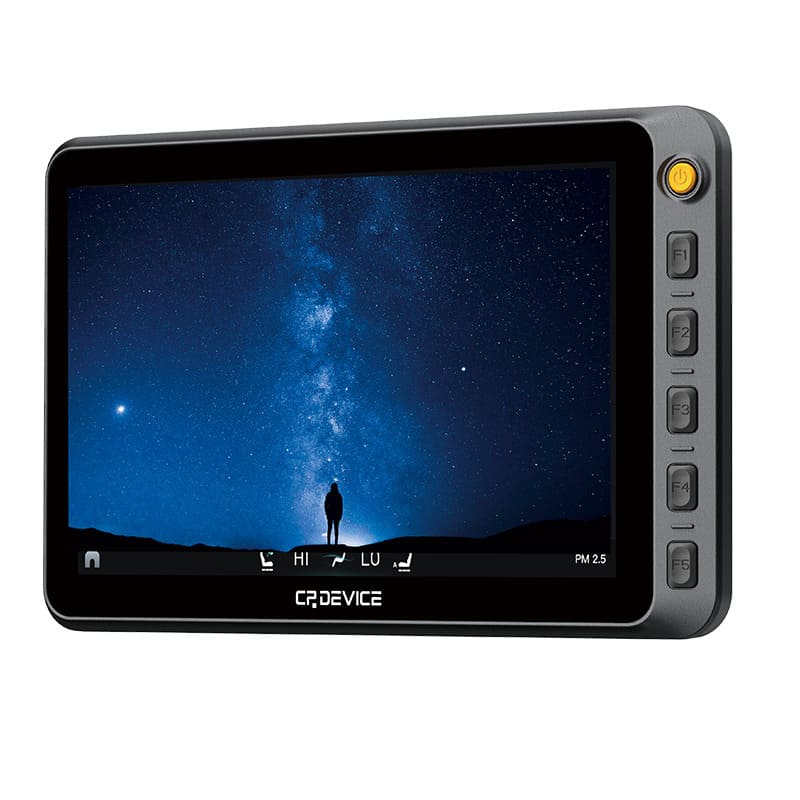

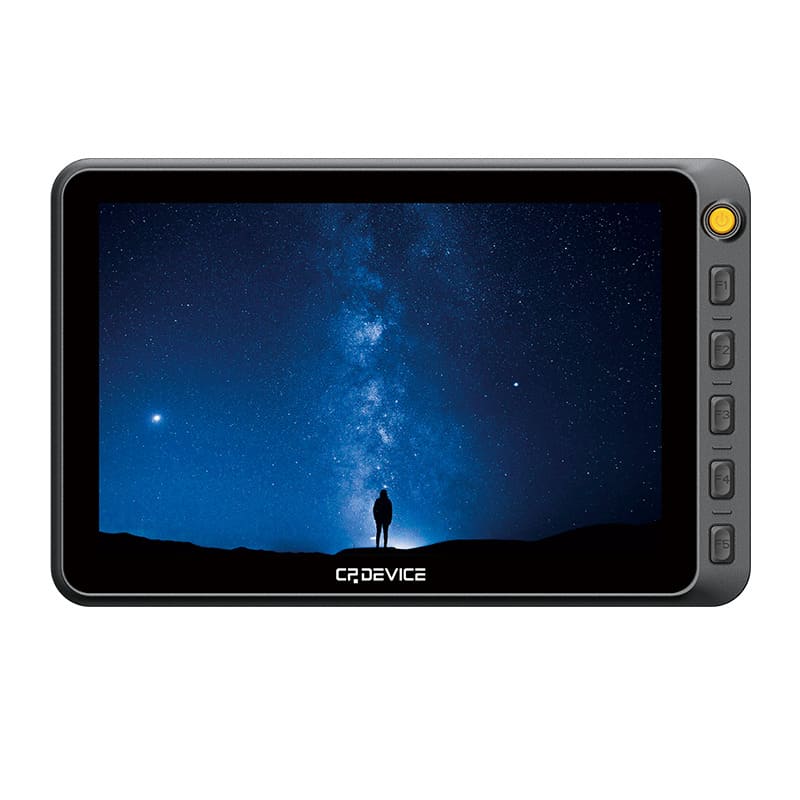

The MEGA1 High-Performance Pinnacle device features a custom interface with 5 programmable keys, a recessed power button, and gloved-operation layout, powered by an 8-core 64-bit SoC with GPU (OpenGL ES/OpenCL/Vulkan), 6 TOPS NPU, and Android 14.0/Linux 6.1 OS. It supports 8-channel cameras (AVM, DMS, FCW) and advanced omni-communication including 4G/5G, WiFi 6, V2V, handheld intercom, dual Ethernet, CAN Bus, RS232/RS485, and Bluetooth 5.3. With a robust design featuring multiple ports and ventilation, it serves applications in precision agriculture, construction, smart transportation, mining, industrial control, warehouse management, bridge monitoring, smart ports, and medicine production.
| System | Processor |
| CPU: Octa-Core 64-bit (Cortex-A76 @ 2.4GHz + Cortex-A55 @ 1.8GHz) | |
| Graphics | |
| GPU: ARM Mali-G610 MP4 | |
| Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2 | |
| Integrated high-performance 2D acceleration hardware | |
| AI Acceleration | |
| NPU: 6 TOPS computing power | |
| Memory & Storage | |
| RAM: 8GB LPDDR4 (expandable up to 8GB) | |
| ROM: 32GB eMMC (expandable up to 128GB) | |
| Storage Expansion: Supports TF card | |
| Operation System | |
| Android 14.0 | |
| Linux 6.1 | |
| Communication & Interface | Wireless Connectivity |
| 4G/5G mobile communication | |
| Dual-band Wi-Fi (2.4G & 5.8G) with 802.11ax (Wi-Fi 6) support, dual spatial streams | |
| Bluetooth 5.3 | |
| 433 MHz Short-Range Wireless Communication | |
| Precision Positioning (Optional) | |
| GNSS (GPS / BDS / GLONASS) | |
| Standard: Meter-level accuracy | |
| High-precision options: | |
| Sub-meter: MXT906B module | |
| Centimeter-grade: UM980 / P20E / UM982 / P20D modules | |
| Wired Interfaces | |
| CAN ×2 | |
| RS232 ×2 | |
| RS485 ×1 | |
| DC Output (12V) ×2 | |
| Digital Input ×2 | |
| ADC Voltage Detection ×2 | |
| USB 2.0 ×1 | |
| Ethernet | |
| Fast Ethernet (10/100M) ×1 (expandable to Gigabit) | |
| Gigabit Automotive Ethernet ×1 | |
| Industrial Protocols | |
| Supports ISOBUS VT (ISO 11783) | |
| Rugged Features | Protection: IP67 |
| Vibration: MIL-STD-810 | |
| Vehicle Standard: ISO16750 | |
| Operational Temperature: -30℃ ~ +70℃, Humidity: 0% - 90% | |
| Storage Temperature: -40℃ ~ +85℃, Humidity: 30% - 95% | |
| Salt Spray Test: 48 Hours | |
| Button | Power Button*1, Function Button*5 |
| Display | 10.1" 5-Point Capacitive Multi-touch Screen |
| Above 750 cd/㎡ | |
| 1280*800px | |
| Anti-Glare Display under Strong Sunlight | |
| AV & Sensor | AHD Camera Input*8 (720P or 1080P) |
| Supports CP AVM 360 Surround View | |
| Microphone | |
| Built-in Speaker | |
| Supports External Audio Output | |
| Light Sensor | |
| Power | Power Specifications |
| Wide Voltage Input: 9-36V DC | |
| Ignition Detection: ACC status monitoring | |
| Voltage Monitoring: Real-time power supply detection | |
| Power Protection Features | |
| Reverse Polarity Protection: Safeguards against incorrect connections | |
| Delayed Shutdown: Backup power support during power loss | |
| Power Failure Detection: Instantaneous outage monitoring | |
| Brownout Protection: System protection during voltage drops | |
| Dimension | Dimensions (W*H*D): 270.9*173.5*33.2mm |
| Weight: 1.3kg | |
| Connector | 26PIN Connector*2 |
| SMA Connector*2 | |
| TNC Connector*3 | |
| USB Type-A Connector*1 | |
| Customization | Optional Handheld Microphone Intercom (shares interface with built-in speaker) |
