High Performance High Computing Power MEGA1 Assists Leaping into the AI Era

Last week, we introduced the external rugged capabilities of MEGA1, each one standing up to scrutiny. For a long time, to ensure the superior performance and stability of intelligent products, Congping has never lowered design standards, nor used substandard materials, striving for improvement and enhancement every day.

Today, let's explore the "Inner Beauty" of MEGA1

01 Superb High-Performance, High-Compute SoC

• CPU: 8-core 64-bit (4x Cortex-A76 @ 2.4GHz + 4x Cortex-A55 @ 1.8GHz)
• GPU: ARM Mali-G610 MP4, supports OpenGLES 1.1/2.0/3.2, OpenCL 2.2, Vulkan 1.2. Embedded high-performance 2D acceleration hardware.
• NPU: Supports 6 TOPS computing power
• MEM: 8GB RAM LPDDR4, supports up to 8GB; 32GB ROM EMMC, supports up to 256GB; supports expandable TF card
• OS: Android 14.0 / Linux 6.1

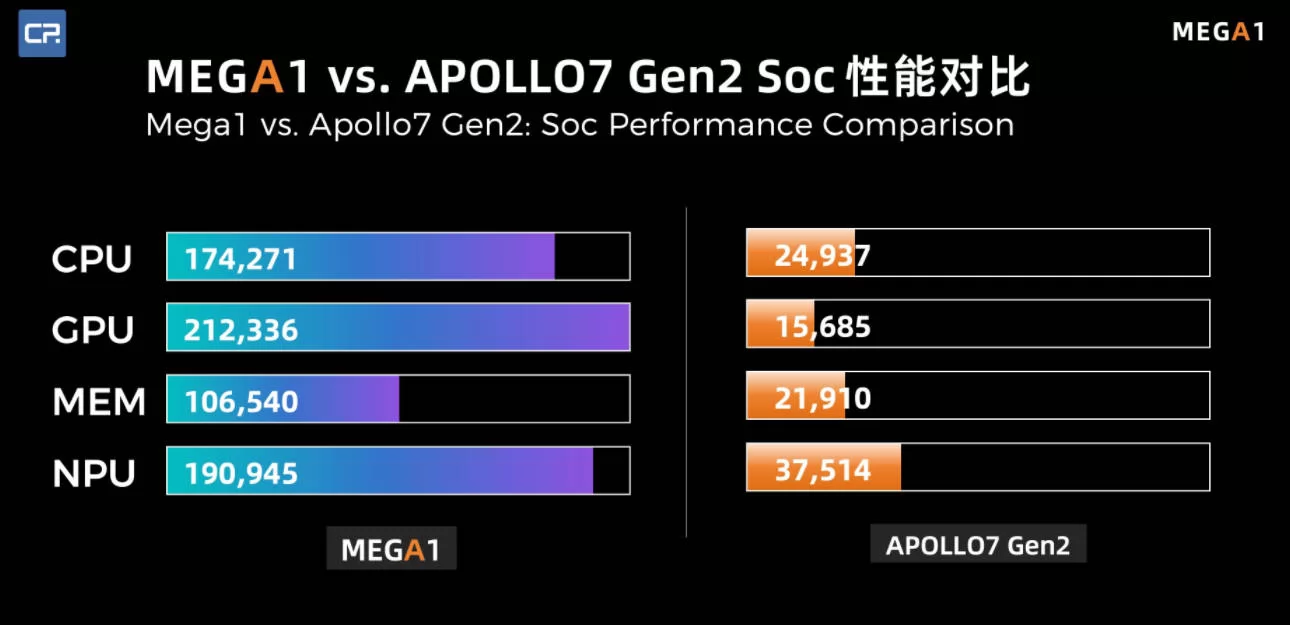

Benchmark comparisons between the MEGA1 SoC and Congping's previous generation platform show overwhelming superiority across all aspects: CPU, GPU, and NPU.

02 Visual Sensor Input Capacity Beyond Imagination

• AHD CAMERA: 1080P / 720P, 8 channels
• IP CAMERA: Gigabit / Fast Traditional Ethernet & Gigabit Automotive Ethernet, virtually unlimited input capacity.

On the foundation of a leap spanning multiple tiers in camera input capacity, we have also refined the details of camera usage and announced several important upgrades.

• Supports Hot-Swapping: This upgrade solves the issue of previous products not supporting hot-swapping. Using cameras is now completely flexible.
• Multi-Process Video Stream Usage: No more worrying about a specific camera being occupied.

03 Visual AI Applications Reach New Heights

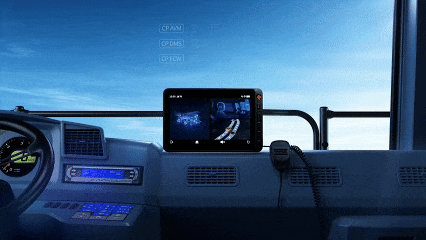

• CP AVM: Achieves a 360° surround view of the entire vehicle body using only 4 cameras. The algorithm is excellent, the stitching effect is nearly seamless, and it can detect vehicles and pedestrians. Runs smoothly on MEGA1.
• CP DMS: Driver Monitoring System, keenly captures abnormal driver postures, fatigue, smoking, and other dangerous driving behaviors, enabling local alerts, saving data, and cloud synchronization.
• CP FCW: Forward Collision Warning, utilizing the latest recognition algorithms, is one of the safety cornerstones provided by visual AI applications during vehicle operation.

Besides the commercially available Congping visual application software, we have also concentrated on creating multiple demos for large AI models and the latest visual AI models on MEGA1, offering rich application possibilities.

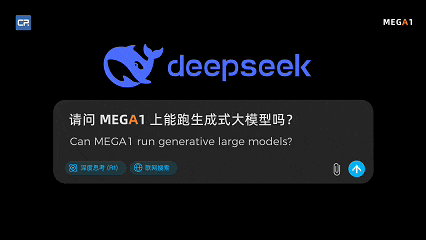

• Large AI Models: Customers ask us: Can MEGA1 run Deepseek? We actually deployed Deepseek and conducted multiple tests. The answer is yes!

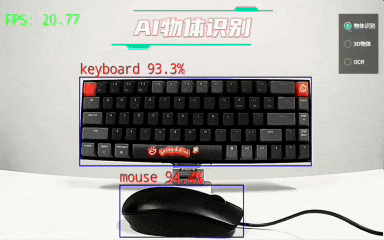

• Object Recognition: Testing on MEGA1 proves that precise object recognition AI applications can run smoothly.

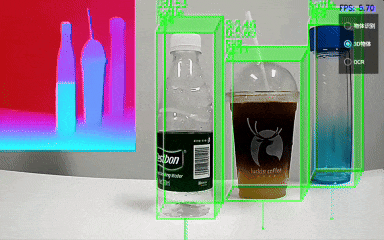

• 3D Recognition: Testing proves that, leveraging combined GPU and NPU capabilities, AI 3D recognition, 3D modeling, and other applications can be fully commercialized on MEGA1.

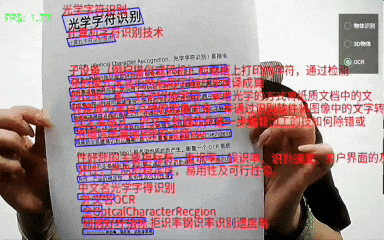

• OCR: Optical Character Recognition on MEGA1 is effortless.

The range of AI applications extending from visual sensing alone is vast, basically meeting all such needs in large work sites. Examples include vehicle access management (license plate control) and vehicle operation safety management (safe driving and road travel safety) in large mines. MEGA1 provides integrated hardware and software guarantees for safety management solutions in enclosed areas like mines, making it arguably the top choice for customers/users with such requirements.
