System
-
CPU: Quad-Core 64 Bit Cortex-A55, 2.0GHz
-
GPU ARM G52 EE
-
2GB RAM LPDDR4, Up to 8GB
-
16GB ROM eMMC, Up to 128GB
-
Android 11.0, Linux 5.10
Communi-cation & Interface
-
4G / 5G
-
Wifi 802.11 b/g/n/ac, 2.4G/5G
-
Bluetooth 4.2
-
GNSS (GPS/BDS/GLONASS), Positioning with meter/sub-meter/centimeter level precision. Optional MXT9068/UM980 / P206 / UM982 / P20D
-
SocketCAN
-
RS232/1 + RS485/1 or RS232/2
-
Debug RS232
-
ADC input voltage detection, 12V max
-
ADC current sensing, 4-20mA
-
DC OUTPUT 12V 3
-
I/O_INPUT/5
-
USB 2.0/1
-
1000BASE-T1 Automotive Ethernet/1
-
Supports CP ISOBUS VT

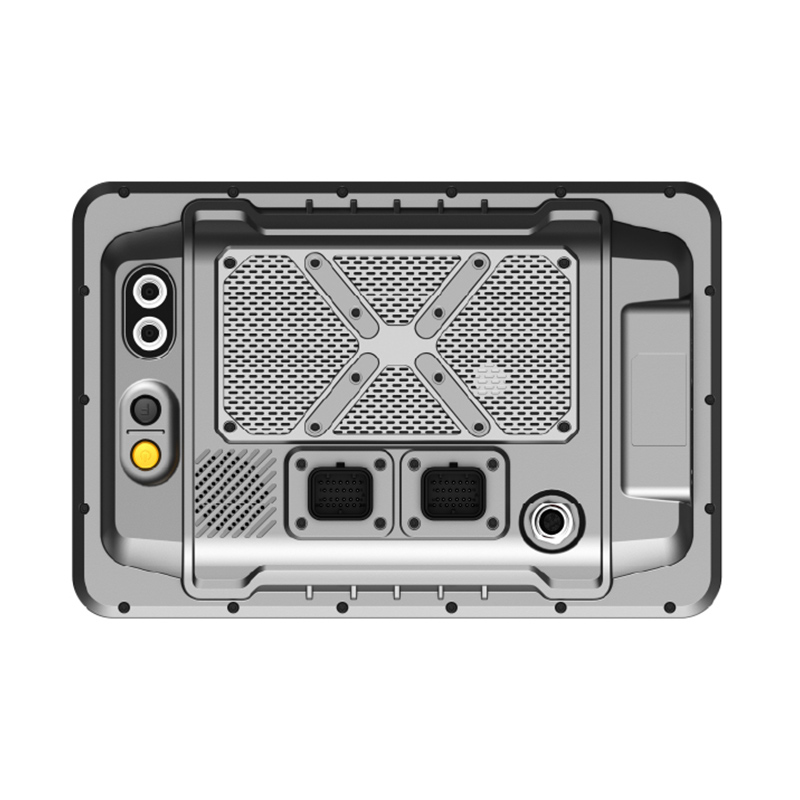

Connector
-
26PIN Connector *2
-
M12 X-code Aviation Connector/1
-
SMA Female Connector/1
-
TNC Female Connector/2
-
USB Type-A Connector/1
|

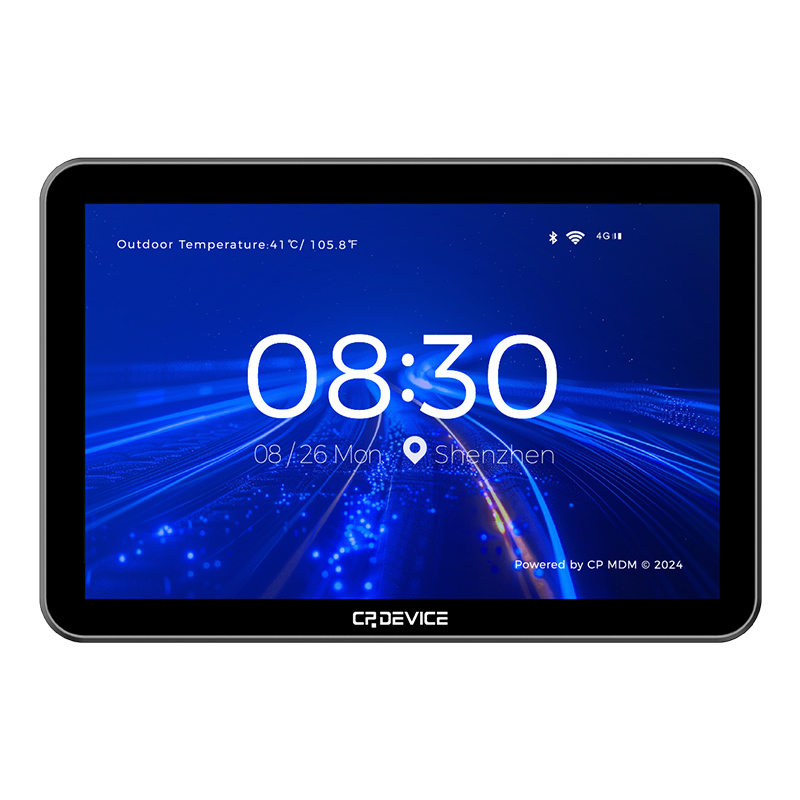

Display
-
12.1" 5-Point Capacitive Multi-touch Screen
-
1280*800px, Above 750 cd/m², Anti-glare
-
Hybrid dual-screen system supporting:
-
Independent display/touch modes (extendable)
-
Synchronized display with touch mirroring
Power
-
9-36V DC Input
-
ACC ignition Detection
-
Power Supply Voltage Detection
-
Reverse Voltage Protection
Sensor
-
AHD Camera up to 1080P/4 or 720P/4
-
Support CP AVM 360 Surround View
-
Support Built-in Speaker/1 or External speaker/2 or External dual-channel audio output
-
G-Sensor/1
Rugged Feature
-
Protection Level: IP67
-
Vibration: MIL-STD-810
-
Road Vehicle Standard: ISO16750
-
Operation Temperature: -30°C ~ +70°C
-
Operation Humidity: 0% - 90%RH
-
Storage Temperature: -40°C ~ +85°C
-
Salt Spray: 48 Hours of Salt Spray Test
Mechanical Spec
-
Dimension (W*H*D): 297.6*199.7*34.8mm
-
Weight: 1.46kg
Button
-
Power Button/1, Function Button/1
|
